Hole Profiling Pile Imaging Tester

The Hole Profiling Pile Imaging Tester (HPPIT) is a state-of-the-art testing equipment to perform hole profile (or shape) of a drilled bore hole (or spun pile hole) by plotting the hole profiling to verify the pile verticality (or alignment) prior to concrete placement.

Main Features

(1) Size: 800x500x390mm

(2) Weight: 65.0 kg

(3) The sound is 83kHz and depth until 100-150m.

(4) The probe size is 104x104x300mm

(5) USB or wireless upload for data output

Main Specifications

(1) Application range:
Railway, highway, port, subway, rail transit, municipal engineering, high -rise buildings and other drilling piles, bamboo piles, branches
The quality testing of piles and grooves, and all underground continuous walls are tested.

(3) Working principle:
MC-8342 Ultrasonic Pole Quality Detect is a dedicated intelligent in accordance with the principle of ultrasonic reflection to detect pores and groove quality
Chemical equipment.

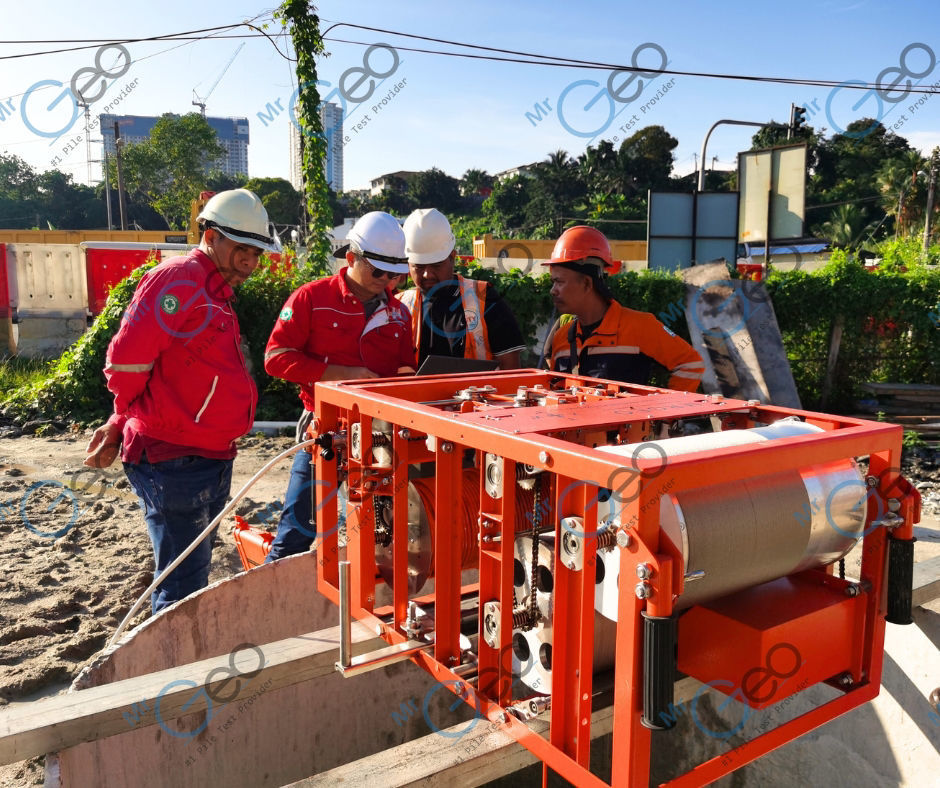

(4) The system consists of the host, probe, twisted, touch display terminal, etc. The probe should be set less during the lower process.

(5) Speed ​​at equal speed test, each test point automatically tests and records the two section data of the "+" fonts at the same time, and the four groups on the probe and receiving transducers automatically emit ultrasound signals, receive signals reflected by the wall of the pores, and the reflection signal reaches the time reactor diameter

(8) The size of the signal strength reflects the characteristics of the wall of the hole. Can calculate the aperture/slot width, pore/groove depth, verticality, indirect calculation

(9) The system adopts high -strength steel wire for probe -oriented and improved.

(10) The host uses a built -in lithium battery to facilitate on -site detection

(11) The system twisting is the smallest in the industry, and ordinary household sedan can be easily loaded. The original drawer tray style self -locking device, a probe lock function, can be well protected and fixed to test probes, effectively reduced the system.

(12) The transportation and testing conditions have brought great convenience to the testing process

(13)  Adopt a unique signal processing method to solve the interference of the signal of the complex electromagnetic environment on the spot to ensure that on-site testing

(14) Ultrasound probe is small, large in power, and strong adaptability. The minimum probe can detect the aperture (slot width) 300mm,

(15) The maximum detection of the aperture (groove width) is 11000mm, and the maximum mud gray may reach 1.4g/cm3, which is suitable for almost all

Test StandardCN/DBJ32/TJ117 Technical Specification for the Quality Inspection of the Hole of Deep Foundations
Test StandardASTM/D8232 - Standard Test Procedures for Measuring the Inclination of Deep Foundations
