Low Strain Pile Integrity Tester

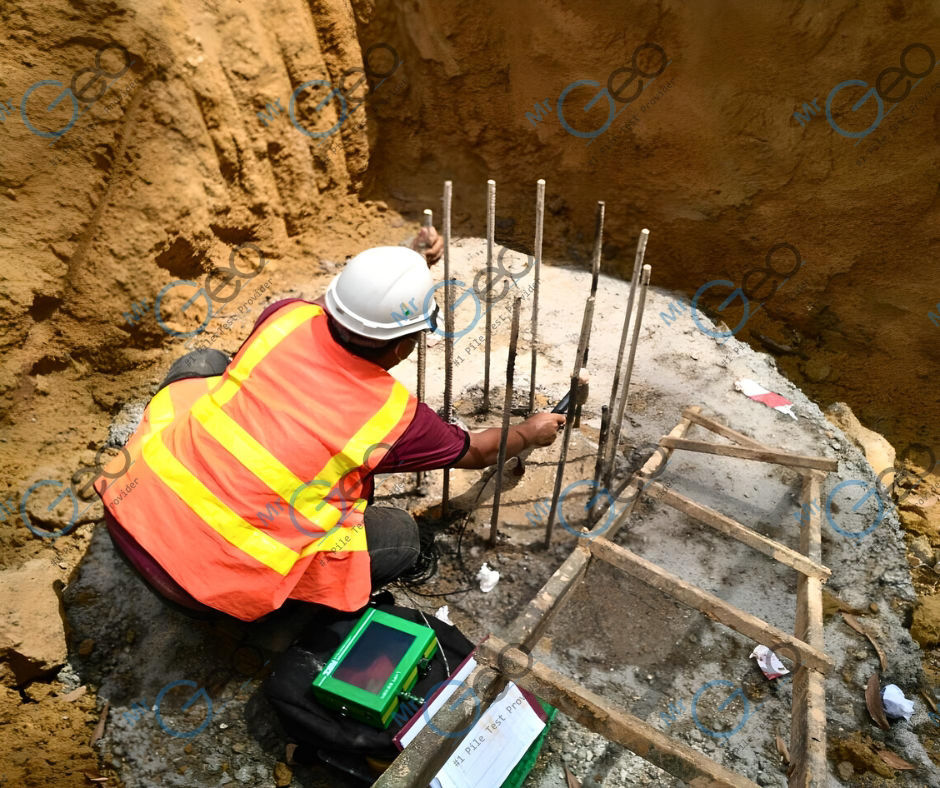

The Low Strain Pile Integrity Tester (LSPIT) is a state-of-the-art testing equipment to perform low strain pile integrity test (LS) on deep foundation piles. The basic system is to test the pile with exposed pile head and available to attach gauges to measure velocity signal.

Main Features

(1) Size: 62x172x225 mm.

(2) Weight: 2.0 kg

(3) 8 -inch touch screen and high brightness color LCD display, can be operated on the screen with hand or touch pens, can be operated on the screen

(4) The instrument uses metal shell, fully closed, dust and waterproof

Main Specifications

(1) Configure the original imported high -quality acceleration sensor

(2) Using a high -precision AD resolution of 24bit

(3) Sample frequency 48kHz, 96kHz, 144kHz three gear can be adjusted

(4) The sampling length is 4096 points

(5) When collecting data on the spot, there is a multi -hammer average superposition function

(6) The instrument has the function of automatic statistics on the number of piles on -site

(7) The data is exported directly through an external U disk

(8) Have a wavelet analysis function

(9) Can be sampled continuously, automatically saved or manually saved

(10) During the sampling process, the index amplification and the wavelet analysis of the measured signal can be synchronized

(11) The instrument has built -in lithium batteries, which can be used continuously for about 6 hours

(12) On -site measurement data, test location (GPS) and other information, automatically use the Internet network to synchronize and increase real -time and real -time increase

Test StandardASTM/D5882 (2016) Standard Test Methods for Low Strain Impact Integrity Testing of Deep Foundations
