YL-PIT Low Strain Pile Testing Device

Product Purposes

◆ Integrity detection by low strain reflected wave method of foundation pile

SKU: YL-PIT
Vendor: YLINK
Free shipping
Old price: RM36,000.00
RM32,000.00
Products specifications
Attribute nameAttribute value
Standard Compliance

◆ JGJ 106-2014 Technical code for testing of building foundation piles

◆ JTG/F81-01-2004 Technical Specification of Dynamic Pile Tests for Highway Engineering

◆ JTG/T 3512-2020Technical Specification for Foundation Piles Testing of Highway Engineering

◆ TB 10218-2019 Technical Specification for testing railway piles

◆ TB 10218-2008 Technical Specification for testing railway piles

◆ DGJ 08-218-2003 Technical specification for testing of building foundation piles

◆ DBJ 15-60-2008 Code for Testing of Building Foundation

◆ DBJ/T 15-60-2008 Code for Testing of Building Foundation

◆ ASTM D5882-07(Reapproved 2013) Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations

Product Features

◆ 8.4" true-color high-brightness touch screen with continuously adjustable backlight, clear display of data and curves, adaptable to various environments

◆ Ergonomic design, high-strength aluminum alloy structure, light weight, small size, an ease for long-time working

◆ Special ow-power technology platform + built-in high-performance rechargeable lithium battery with long standby time

◆ Professional wizard design, optimized procedure, simple operation for efficient testing

◆ Accurate data collection, clear waveform, high signal-to-noise ratio, easy to interpret.

◆ Unique integrated multi-purpose interface, with more convenient software upgrading, data exporting, and instrument charging.

◆ Built-in highly sensitive transmission antenna to provide stable and reliable wireless transmission.

◆ Continuously adjustable backlight, clear display of data and curves, adaptable to various environments

Software Features

◆ The perfect waveform browsing and editing function supports multiple operations such as moving, compressing, expanding, and rotating.

◆ It supports multiple analysis functions such as digital filtering, exponential amplification, integration, differentiation, and spectrum analysis.

◆ The diversified interpretation methods, analysis modes, and display modes make waveform analysis more convenient and more accurate.

◆ The basic information and waveform data of pile testing are completely displayed with more flexible editing operation.

◆ Support multi-mark function, automatic filling of integrity description to reduce analysis difficulty.

◆ It can output various types of reports such as single pile report, engineering report and summary report, and the output curve has high definition.

◆ Support custom report output format.

 ◆ Support custom report output format.

YLINK GeoAli

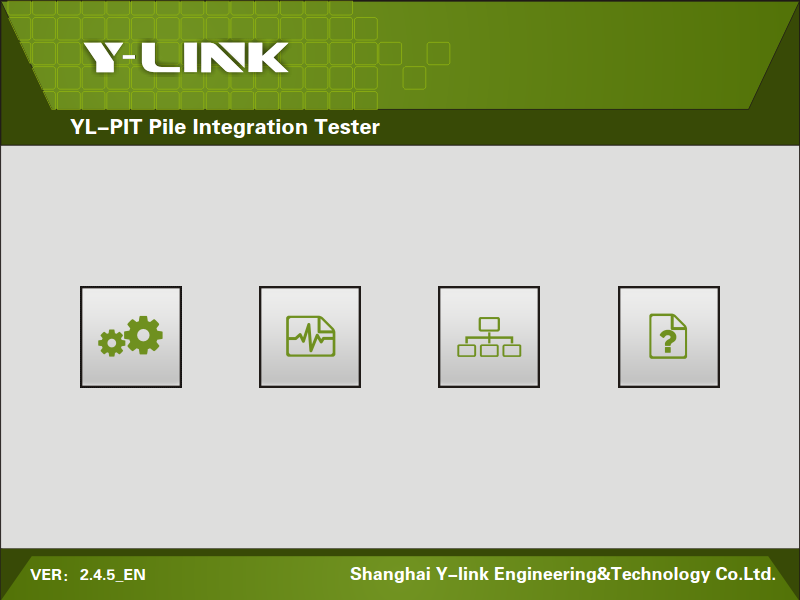

Start interface

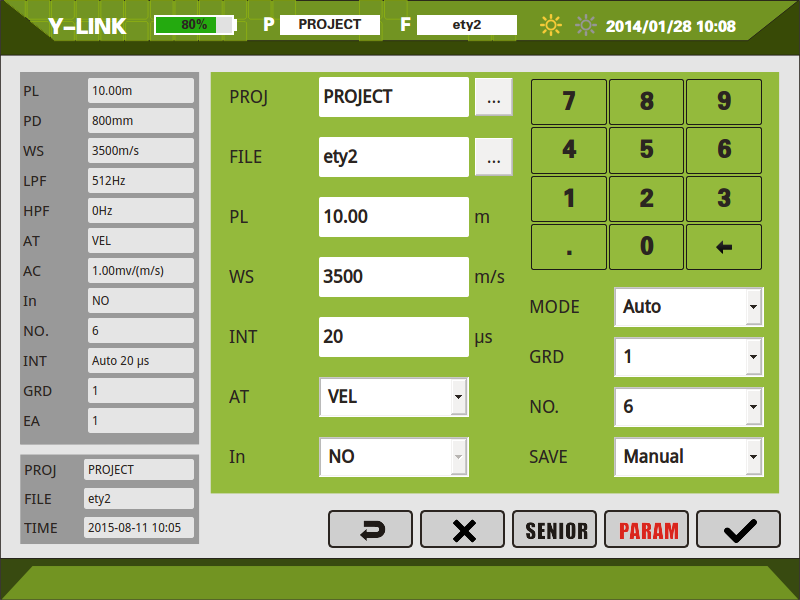

Setting interface

YLINK GeoAli

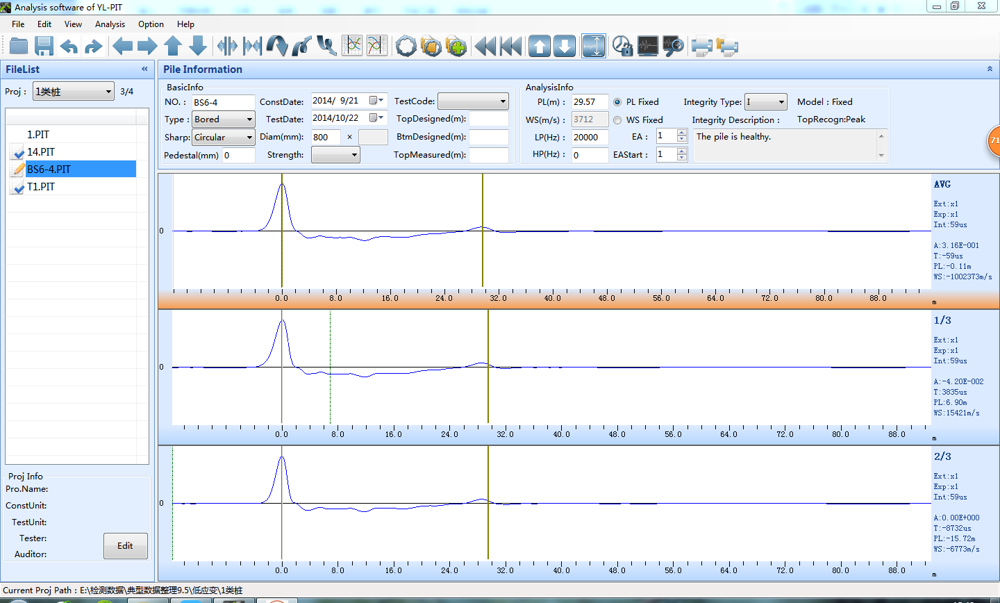

Analysis Interface





Our service



Highly stable product with 2-year free warranty of the main part and lifetime free upgrade for software



We provide professional geotechnical engineers to provide theoretical training, on-site practical training, data analysis and processing for pile detection, and a full range of professional trainings to help the customers to master detection methods and on-site operations to effectively improve the quality and efficiency of detection.

Key Specifications

Main control unit

Low power embedded industrial computer

Display screen

8.4" true-color LCD display screen (high-brightness) 800×600

Storage

8G

Power supply

Built-in high-performance rechargeable lithium battery, ≥8 hours

Operation method

Touch screen

Data transmission

USB2.0

Sampling interval

5μs~65535μs

Record length

1024 dots

Sample resolution

16-bit AD

System noise

<30μv

Dynamic Range

≥100dB

Signal bandwidth

5Hz/12kHz

Number of channels

1

Sensor

Speedometer, front IC piezoelectric accelerometer

Working temperature

-20℃~+55℃

Dimension

266mm×180mm×50mm

Weight

About 1.9kg

Product Configuration

Item

Quantity

Remark

1

PIT host

1

2

Accelerometer

1

3

Hammer

1

4

Force bar

Alternative

5

Power adapter

1

6

Multi-purpose data cable

1

Cable used to transfer data and charge the instrument

7

USB flash disk

1

Used to export data, save the analysis software and user manual

8

Accessory

User Manual, Certification, etc.
